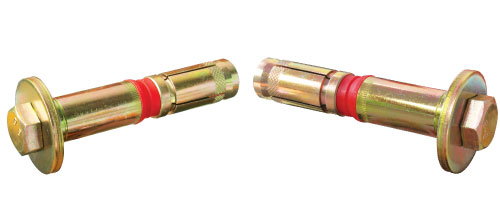

Made from top grade steel for strength and durability, the Tenn HLB High Load Anchor is
designed to achieve the highest clamping loads and secure load bearing anchorage in hard
concrete.

Tenn HLB Anchors feature a compressible plastic collar, the purpose of which is to prevent the bolt
from being prestressed before the attachment or fixture is securely tightened against the concrete
surface.

The anchor is set by tightening the bolt head,
which draws the cone nut up through the expansion sleeve, expanding it against the sides
of the drill-hole.

HLB anchor develops its tensile capacity by means of a combination of high frictional
resistance generated by the anchor’s expansion forces and a keying grip developed between the
expanded anchor and the surrounding concrete mass. The spacer sleeve aids in increasing the
shear capacity. The anchor’s tensile capacity depends on the depth of embedment and the
strength of the concrete.

Typical Applications
• Tunnel fi xtures
• Safety railings
• Space frame base plates
• Curtainwall brackets
• Pipework supports
• Roof trusses
